Summary

Video:

A while back I uploaded a video of my 3D-printable gearbox and some people told me it looked like a shredder, I thought this was actually a nice idea so i build one. I mainly build this thing jut for fun and to show people what the possibilities are with 3D-printed parts because some people still think 3D-prints are not functional and you can only make vases, figures or boats with a 3D-printer. 3D-printed parts of course have their limits like you'll see in the video ;-). Almost every part in this build is 3D-printed, except for the shafts bearings, nuts and bolts etc.

To drive the shredder I used the gearbox I mentionned above. Video can be found here: https://youtu.be/d8us3OWgS1A
The gearbox was powered by a 3S 2200mah LIPO battery With the help of the Universal Motion Controller i made. It's possible to run the gearbox on a 6S LIPO but this would destroy the gears almost immediately in this application.

The fusion 360 source file option includes these formats:
-.dwg
-.dxf
-.f3d
-.fbx
-.iges
-.obj
-.sat
-.skp
-.smt
-.step
-.stl
-.zip (containing .ipt and .iam files)

The STL-files option includes these formats:
-.STL
-.pdf (shaft dimension drawing)

*Note: Only the STL-files for the shredder part are included in the download, STL-files for the gearbox can be found here: https://bbprojects.technology/stl-fusion-360-source-files/3d-printable-high-torque-servo-gearbox-version-2-files

Updated STL-Files info:
11/05/2022:

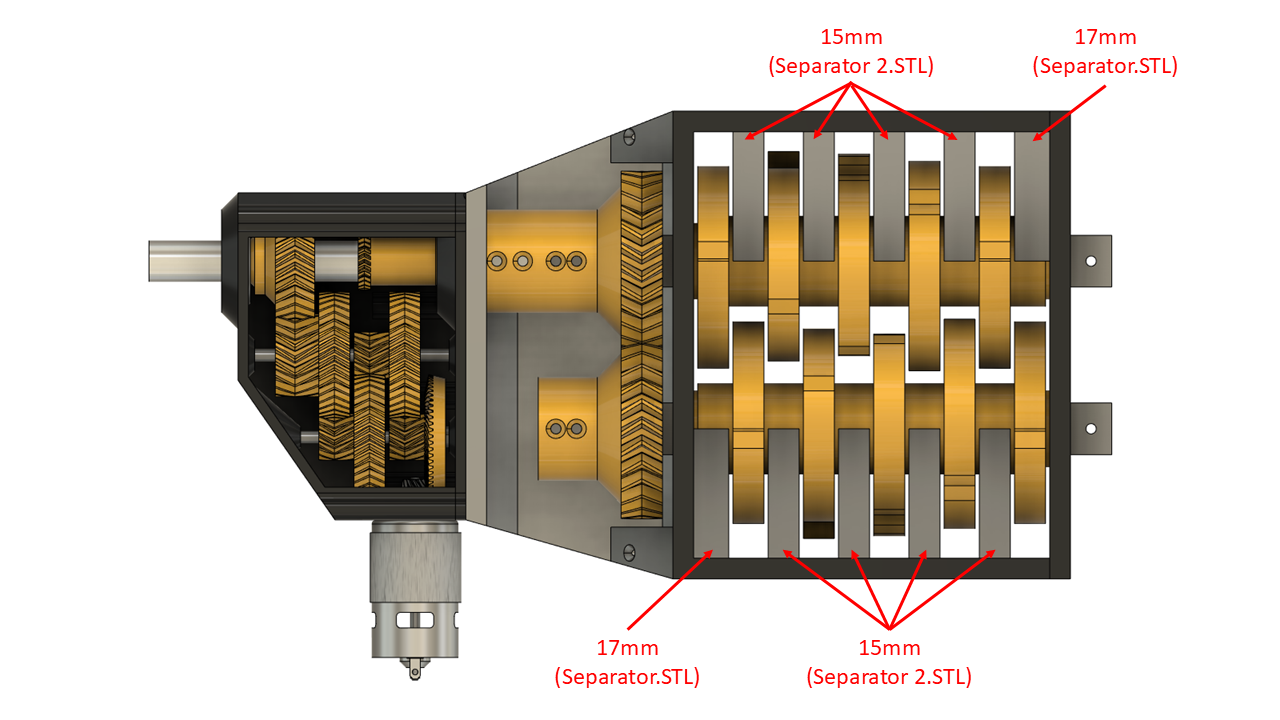

Small spacer between the bearing and shredder teeth was missing from the files. This has now been added.

Updated Fusion 360 Source files info:
04/06/2021:
An updated model of the gearbox, used to drive the shredder, has been implemented in the design.
The updated model of the gearbox contains:
- Minor improvements to the structural integrity of the gearbox case.
- A flat spot on the angled side of the case so washers and spacers can be mounted straight instead of on an edge.
- Minor improvement in gear tolerances.

Part list, schematics, code and more info about this project can be found here:
https://bbprojects.technology/blogs/projects/3d-printable-shredder

Print Settings
Filament used:

Creality PLA

Printer used:
Flsun Q5

Supports:
Yes

Resolution:
0.2

Infill:
25-30%

The 3D-printers, tools and materials I'm using for these projects can be found here: Tools and materials – bbprojects

Note: This is not a physical product. When you're purchasing the STL or Fusion 360 source files you will be able to download these files. A physical product will not be send to your address.


All my designs are licensed according to the CC BY-NC-ND license: https://creativecommons.org/licenses/by-nc-nd/4.0/
